Product Description

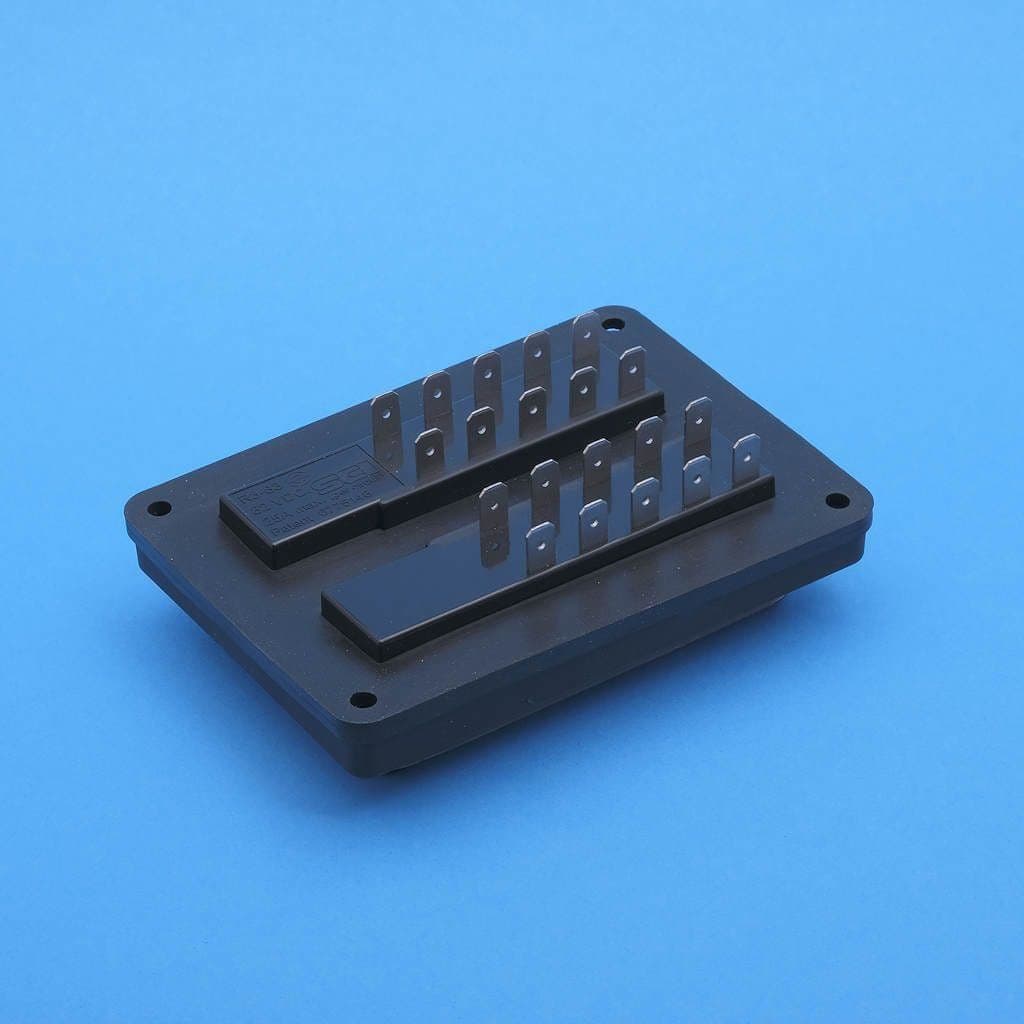

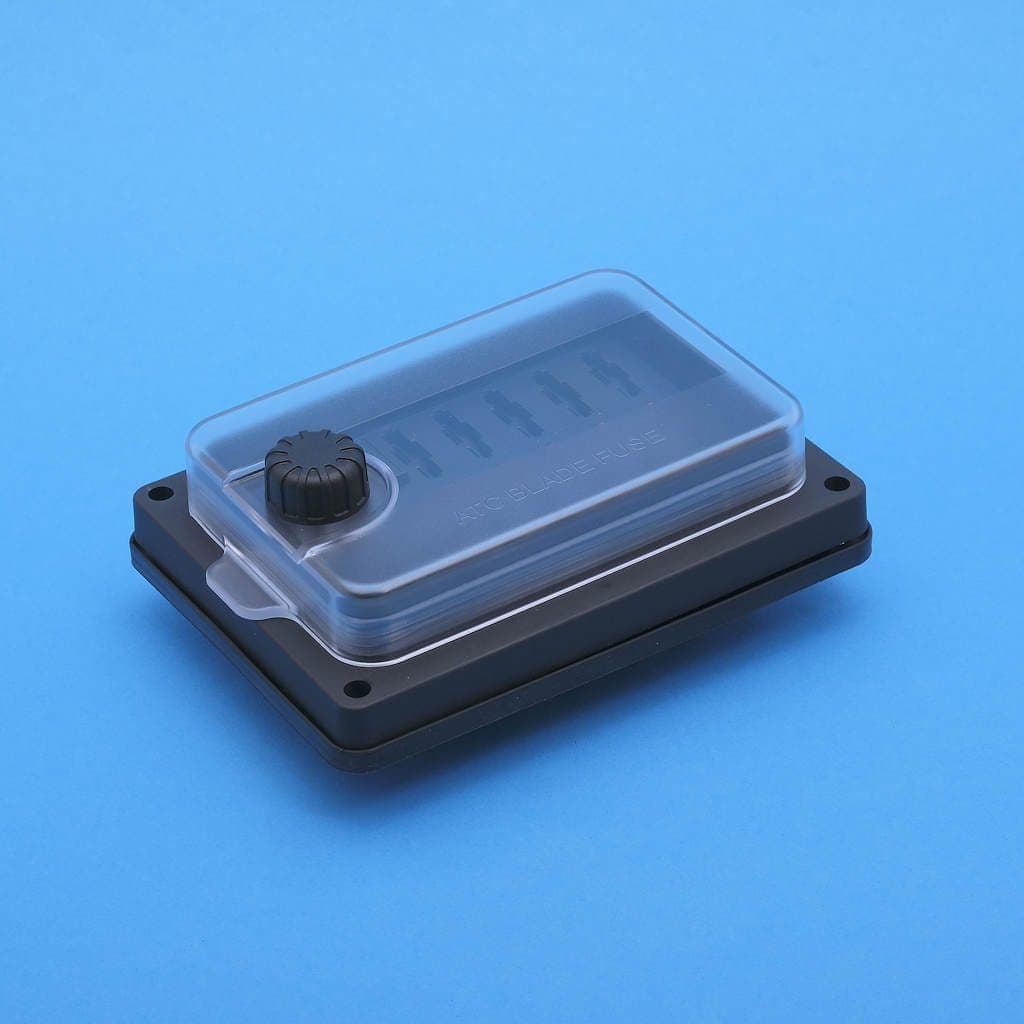

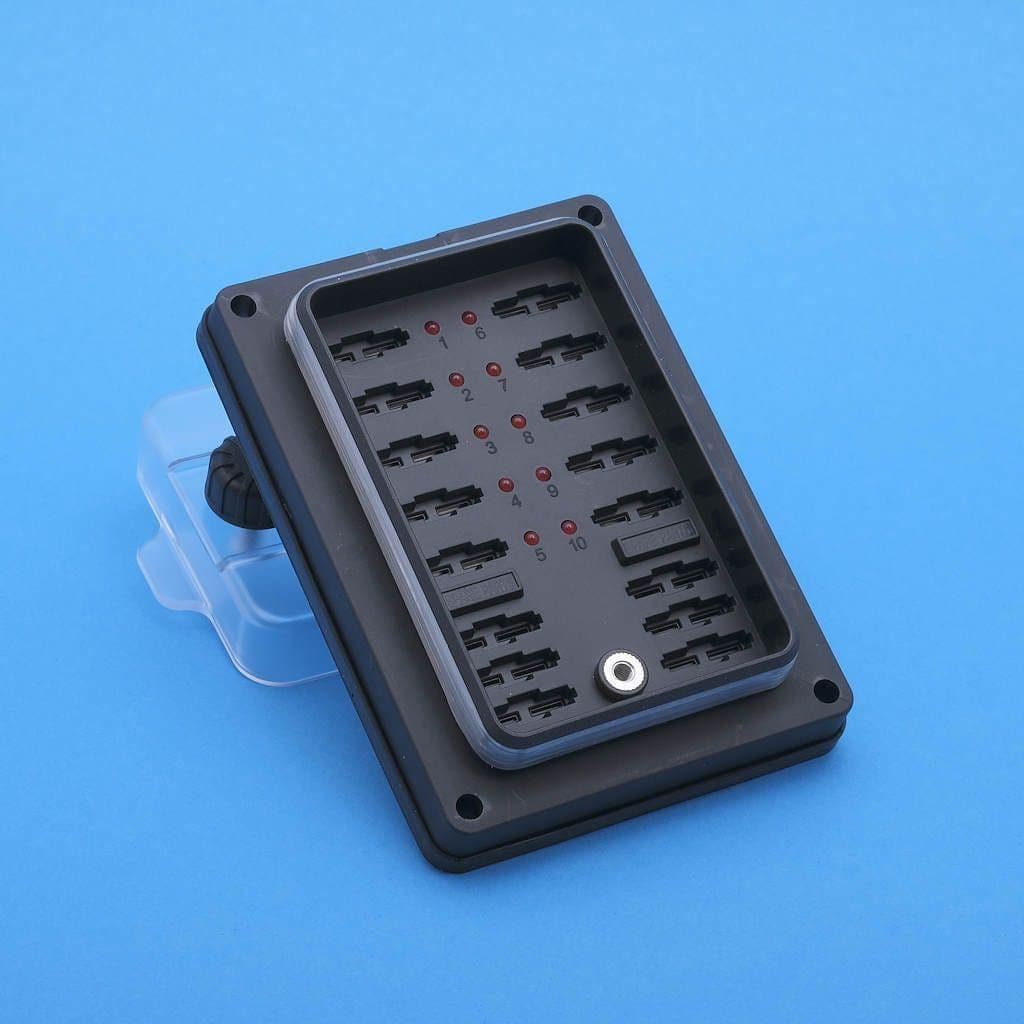

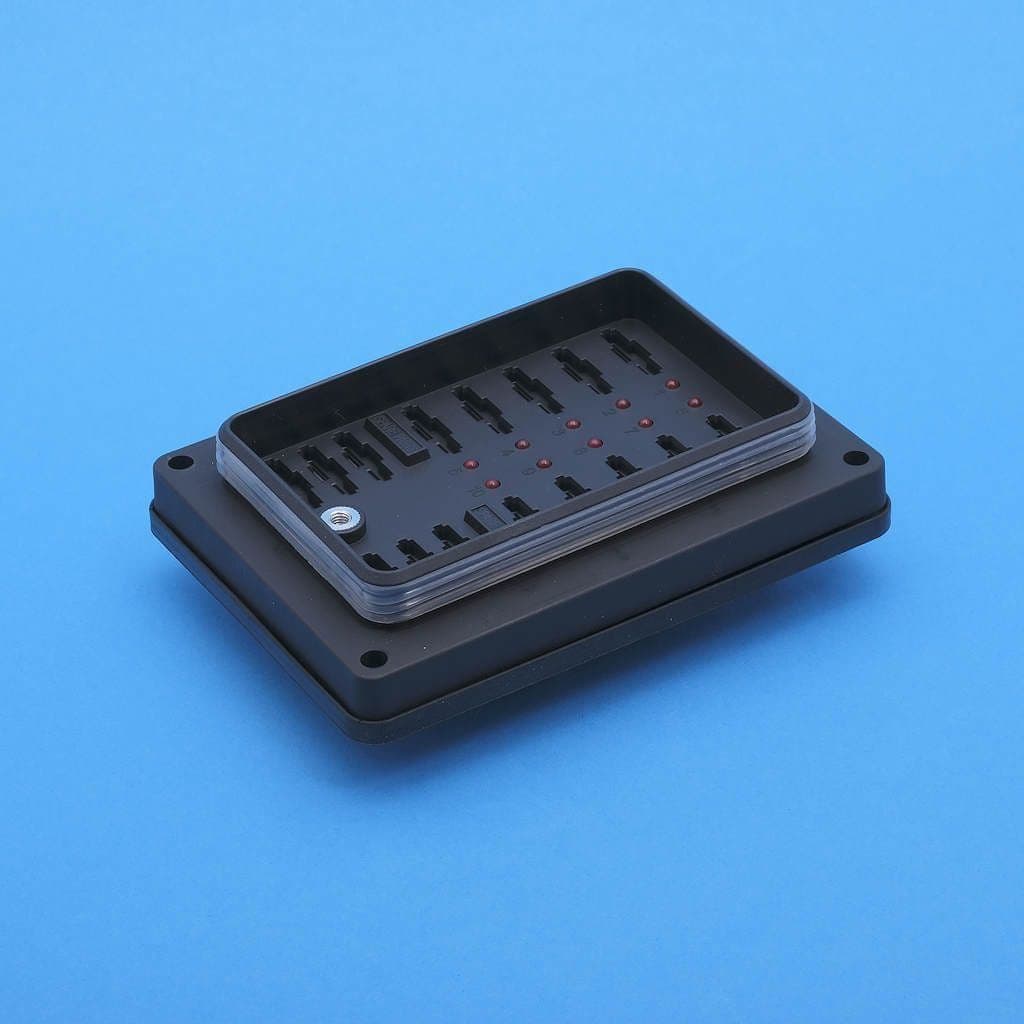

10 way blown fuse indicating fuse box for mounting on a flat panel. Clear screw down cover with silicon seal and rubber gasket between the base and mounting panel. Space is proviced within the cover for 6 spare fuses. All connections are independant with 6.3mm spade terminals.
Length 125mm, width 90mm, height inc cover knob 38mm.
Cutout 93mm x 60mm.
Max voltage 32 VDC. Max load per circuit 25A. IP56
Read More

Specifications

Product Code
FBW10L
Weight
0.24kg
10 way blown fuse indicating fuse box for mounting on a flat panel. Clear screw down cover with silicon seal and rubber gasket between the base and mounting panel. Space is proviced within the cover for 6 spare fuses. All connections are independant with 6.3mm spade terminals.
Length 125mm, width 90mm, height inc cover knob 38mm.
Cutout 93mm x 60mm.
Max voltage 32 VDC. Max load per circuit 25A. IP56
Product Code
FBW10L
Weight
0.24kg

10 way panel mounting indicating fuse box. Splashproof. (FBW10L)

Item in Stock

Product Code FBW10L
