Product Description

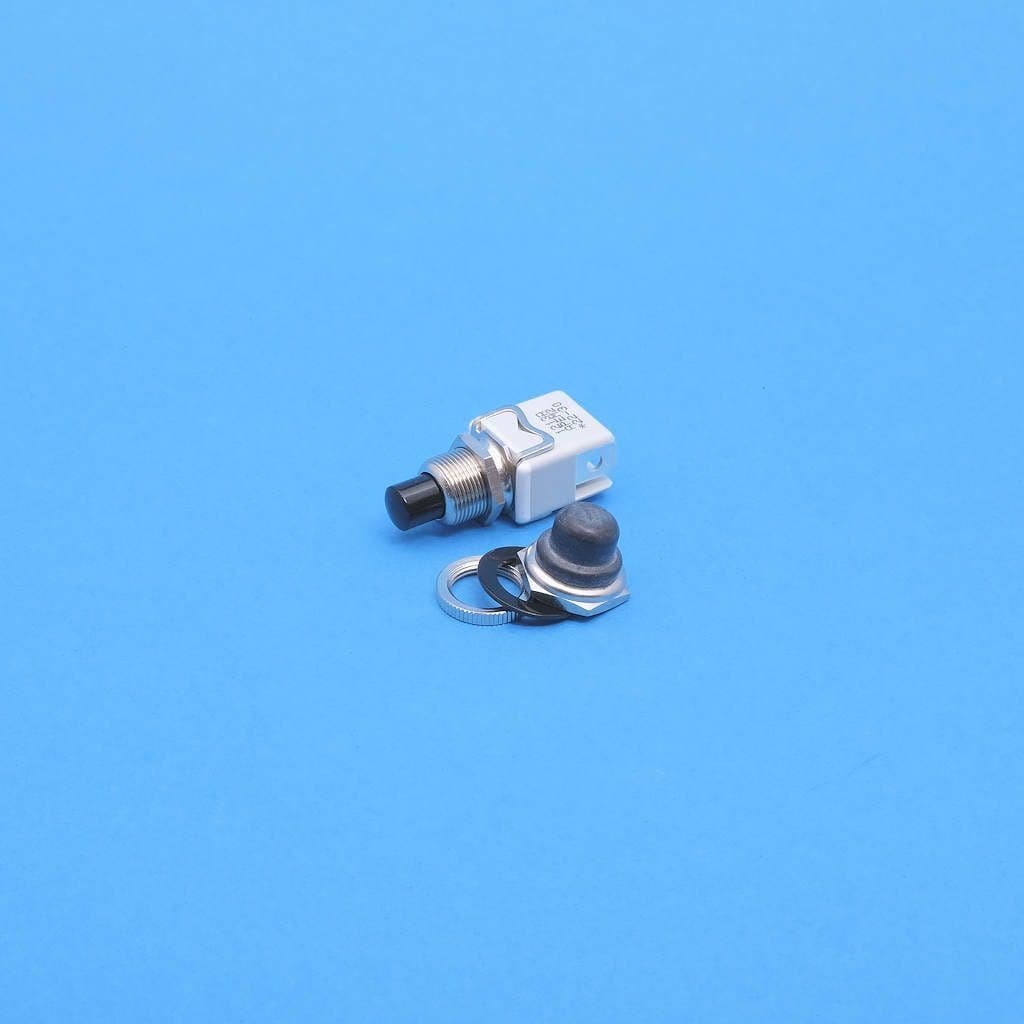

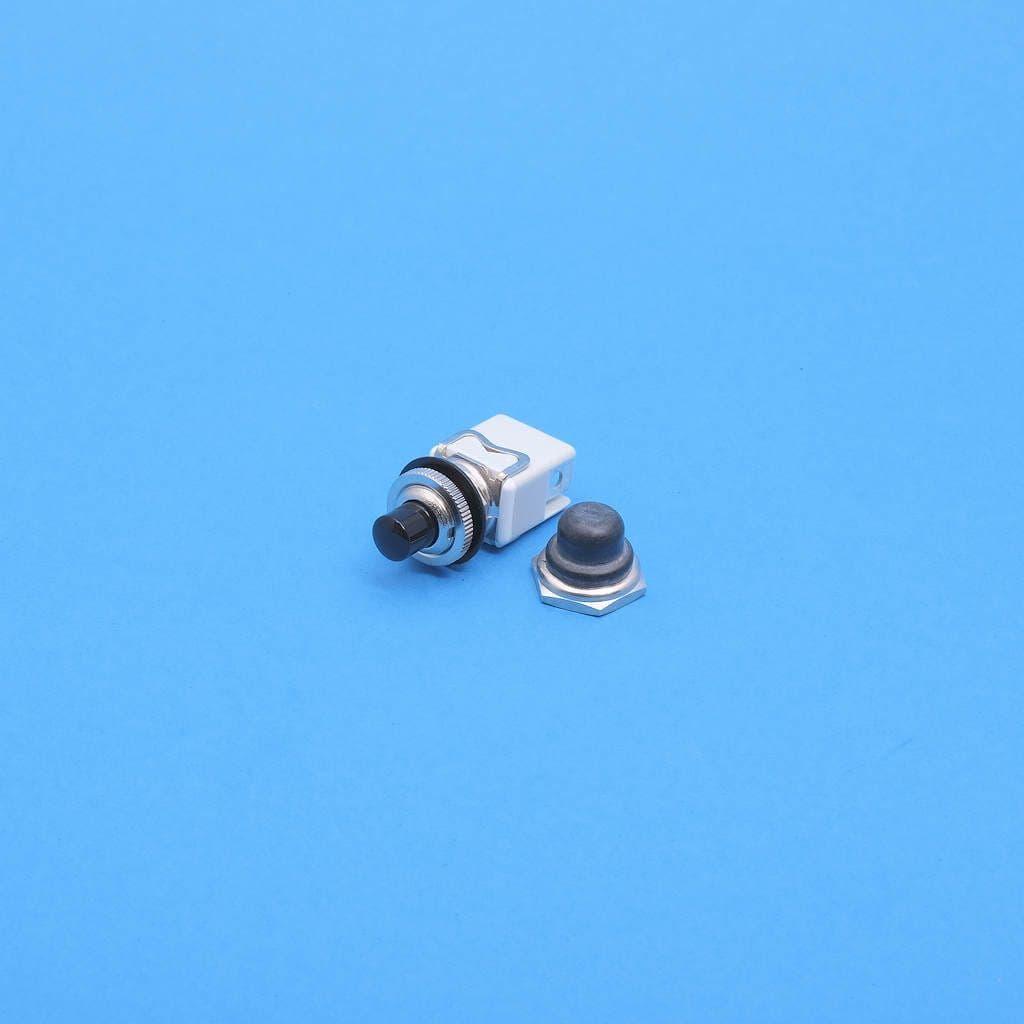

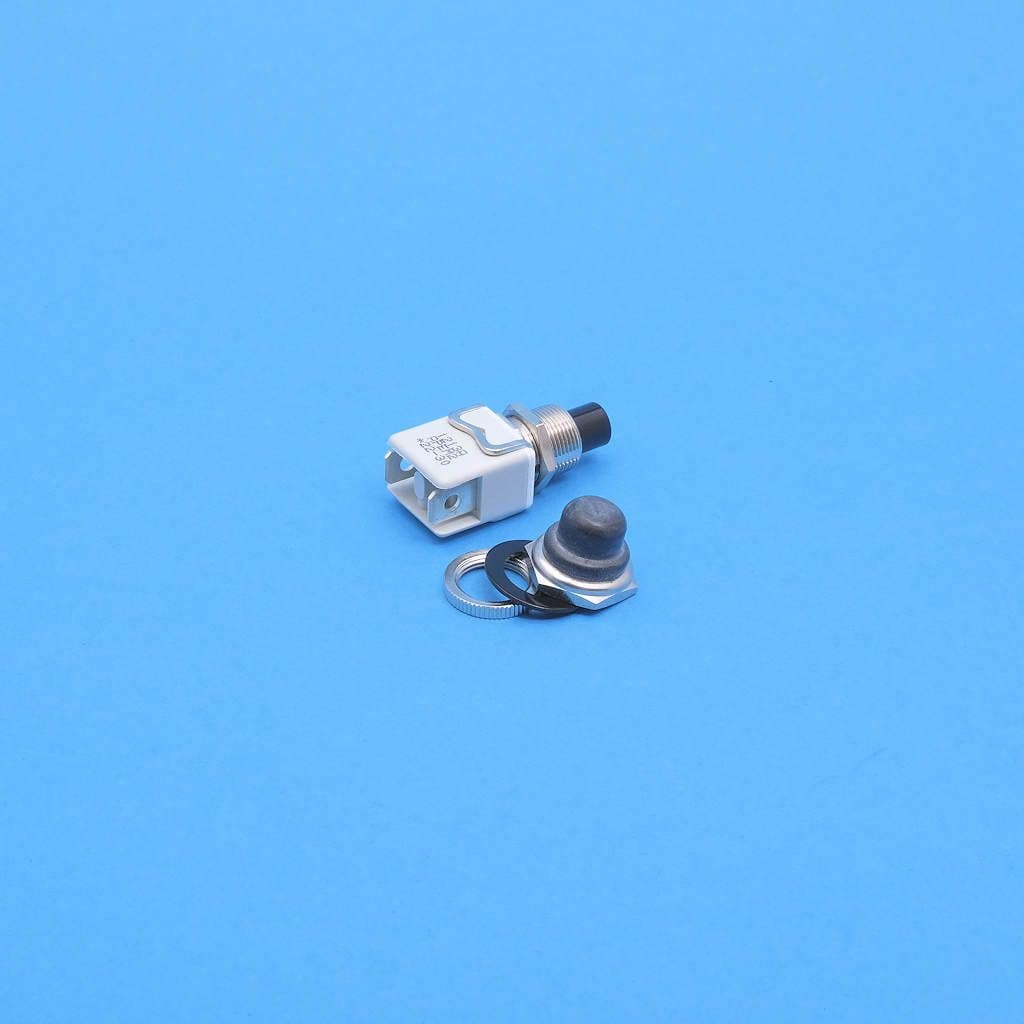

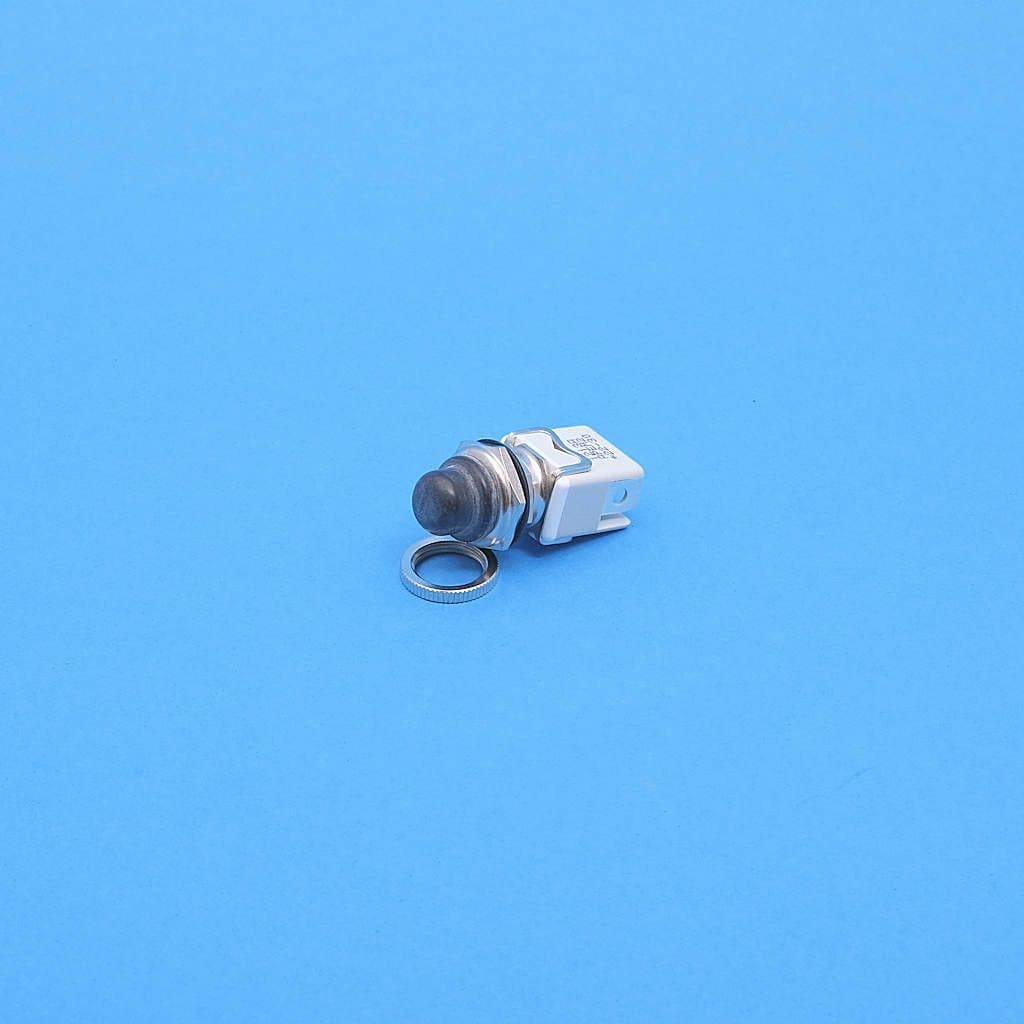

Push button switch for dashboard / data logging control circuits etc.

Push button switch for dashboard / data logging control circuits etc.

Materials:
Case: polyamide
Plunger: polyamide
Bushing: brass, nickel plated
Contacts: copper, silver plated

Electrical Specifications:
Max. current/voltage rating with resistive load: silver plated copper contacts 2A 24VDC - 3A 12VDC
Initial contact resistance: 10 mR max. at 1A 2VDC
Insulation resistance: 1000MR min. at 500VDC
Dielectric strength: 2500 Vrms 50Hz min. between materials
2.500 Vrms 50Hz between terminals and frame
Electrical life at full load: 10.000 cycles

General Specifications:
Torque: 1,50 Nm (1.10 Ft.lb) max. applied to nut
Panel hole dia.: 12.0mm (0.475")
Panel thickness: 5 mm (.196) max.
Total travel: 4,5 (.177") +/- 0,3 (.011")
Operating Temperature: -30ÅC to + 55ÅC

Specifications

Product Code

PBS11

Weight

0.018kg

Description

Push button switch for dashboard / data logging control circuits etc.

Push button switch for dashboard / data logging control circuits etc.

Materials:
Case: polyamide
Plunger: polyamide
Bushing: brass, nickel plated
Contacts: copper, silver plated

Electrical Specifications:
Max. current/voltage rating with resistive load: silver plated copper contacts 2A 24VDC - 3A 12VDC
Initial contact resistance: 10 mR max. at 1A 2VDC
Insulation resistance: 1000MR min. at 500VDC
Dielectric strength: 2500 Vrms 50Hz min. between materials
2.500 Vrms 50Hz between terminals and frame
Electrical life at full load: 10.000 cycles

General Specifications:
Torque: 1,50 Nm (1.10 Ft.lb) max. applied to nut
Panel hole dia.: 12.0mm (0.475")
Panel thickness: 5 mm (.196) max.
Total travel: 4,5 (.177") +/- 0,3 (.011")
Operating Temperature: -30ÅC to + 55ÅC

Attributes

Product Code

PBS11

Weight

0.018kg
